7\\" IPS screen HD video intercom home security video doorbell

Memory Home Security Video Door Phone IPS HD 7" IntercomDescription:-Monitors:1. 7 inches IPS screen2. Hands free3. Touch keys4. Surface-mounted5. Metal case & Vandal-proof6. 4 wires / Cat-5 or Cat-6 connection7. Supports 4 video channels8. Supports maximum length of line connection: 100m9. Power Supply:&

Featured Products

Memory Home Security Video Door Phone IPS HD 7" Intercom


1. 7 inches
IPS screen
2. Hands free
3. Touch keys
4. Surface-mounted
Metal case & Vandal-proof
6. 4 wires / Cat-5 or Cat-6 connection
7. Supports 4 video channels
8. Supports maximum length of line connection: 100m
9. Power Supply:
DC15V,0.8A / AC100-240V 50/60Hz (Optional)
10.Power consumption: 9W(Max),2.5W(standby)
11. TFT resolution: 1024*600
12. Dimension:

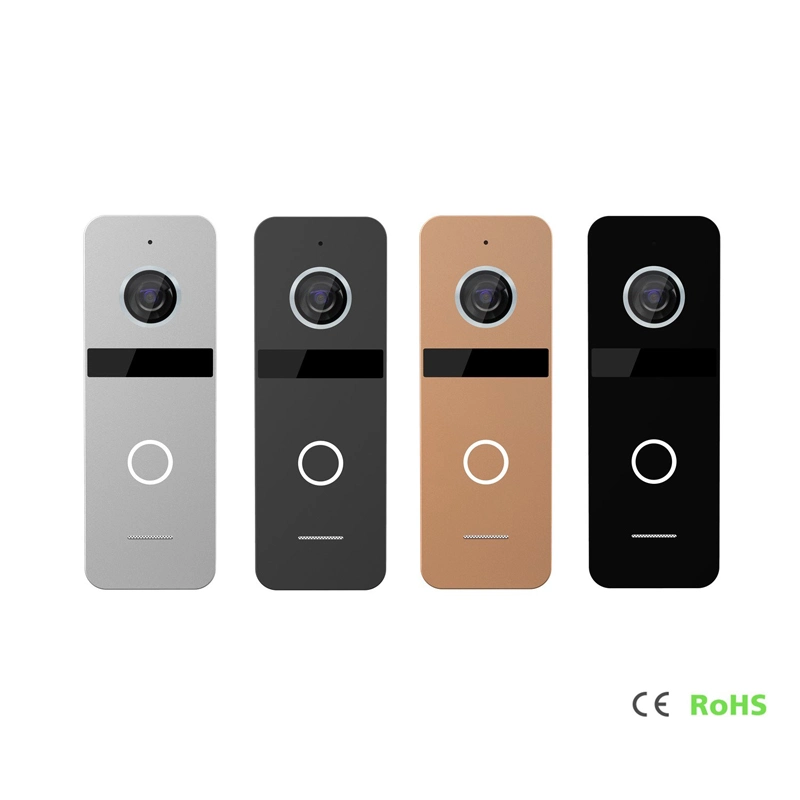

1. 1/3" High-Definition color camera
Resolution: 1080P
3. With night vision
4. Metal case
5. 100° /
155° View angle (Optional)
Protection Standard: IP66.
7. 4 wires connection
8. Surface/
angled construction
9 Supports lock control
10. Operating temperature:  - 30 ºC to + 60ºC
11. Power: 10 - 15V

1. Lock control / Broadcast / Calendar / Alarm clock
2. Capture over 100pcs images with internal flash
3. Monitor doorbell or CCTV cameras
4. Make calls between monitors
5. Monitor listening to another monitor
6. DVR function, with both Video and audio
7. Answer machine function
8. Auto take pictures from doorbell camera
9. Supports Message leave
10 Can take Images or record video from doorbell, even you are talking with visitor
11.Multimedia manager
12.Photo frame
13.Outdoor panel unlock release
14.Indoor monitor unlock release
Type of signal:
CVBS/AHD/TVI/CVI(up to 1080P)

Max. supports:
1).2 outdoor doorbells+4 indoor monitors+2 CCTV cameras
2).1 outdoor doorbell+4 indoor monitors+3 CCTV cameras

1). Surface/angled construction
2). Supports lock control

ScreenIPS screen
Screen size7''
Outdoor panel unlock releaseSupports
Indoor monitor unlock releaseSupports
Type of signalCVBS/AHD/TVI/CVI(up to 1080P)
Connection4 wires / Cat-5
Maximum length of line connection100m
Video channels quantity4
Additional monitors quantity3
Memory block connectionBuild in card-reader for micro SD card
Image captureSupports
DVR with both Video & voiceSupports
PowerDC15V,0.8A / AC100-240V 50/60Hz (Optional)

Subscribers quantity1
Camera1/3'' Color CMOS
Angle of view100° / 155° View angle (Optional)
Protection StandardIP66
Type of signalCVBS/AHD/TVI/CVI
ConstructionSurface/Angled mounting
Operating temperature- 30 ºC to + 60ºC
Connection4 wires
Lock controlSupports

All our models are passed CE, RoHS, REACH certificates, and with 2 years warranty, you are welcome to visit our factory or take samples to test our quality.
website: eeguard.en.made-in-china.com


Q: Can i get a sample to test first?
E: Yes, you are welcome to take samples to test our quality at anytime.

Q: Can you do OEM / ODM for customers?
E: Yes, we do OEM & ODM service, we also do LOGO, Giftbox designs, any design as your like.
Q: What's your MOQ?
E: it's no MOQ for neutral models. The MOQ is 300PCS/Model to print your logo & giftbox.
Q: How about your lead-time?
E: It's 2-5days for samples; It's about 25 working days after get your deposit for bulk order.

Q: What's your warranty for your products?
E: 2 years after the shipment.
