Model Number: JR302-SC-OW
APPLICATIONS:
Handsfree Elevator Intercom Telephone with Weather Resistant could used for Banks,cleanroom,hotel service,escape trunk,Marine,Chemical plant,control room,metro station and related industrial application, etc.Industrial Flush Mounted Telephone is designed for voice communication in the hostile environment where reliability, efficiency and safety are of prime importance.
It is designed to meet the needs of clients who experience loss through vandalism.
Ideal for schools, streets, public square, court houses, rail platforms, car-parks, police stations, hospitals, outside buildings, gate entry, etc.
Technical Date:
SIP Version | ||
| Power Supply | PoE or 12V DC | |
| Power Consumption | -Idle:1.5W -Active:1.8W | |
| SIP Protocol | SIP 2.0 (RFC3261) | |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 | |
| Communication Type | Full duplex | |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) | |
Analogue Version | ||
| Power Supply | From the analogue telephone network | |
| Supply Voltage | 24 VDC to 65 VDC | |
| Supply Current | 20 mA DC to 100 mA DC | |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) | |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. | |
3G Version | ||
| Power Supply | 12V DC | |
| Power Consumption | -Idle:0.3W -Active: 1.5W | |
| Communication Type | Full duplex | |
| Ringer volume | 90~95dB(A) at a distance of 1 m | |
| Program Method | Remote programming by SMS | |
| Frequency | A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz | |
| Telephone Versions | Analog,SIP,GSM,3G optional |
| Operating Temperature | -30°C to +65°C |
| Storing Temperature | -40°C to +75°C |
| Ringing Tone | 80 dB @ 1 meter typical |
| M.T.B.F. | excess of 50,000 hours using |
| Power Supply | telephone line or DC or solar powered |
| Weather Resistance | IP54-IP65 |
| Casing Material | vandal proof steel body |
Ambient conditions | ||
| Protection type | IP55-IP65 as per EN60529 | |
| Operating temperature | -25°C to +70°C | |
| Storage temperature | -25°C to +85°C | |

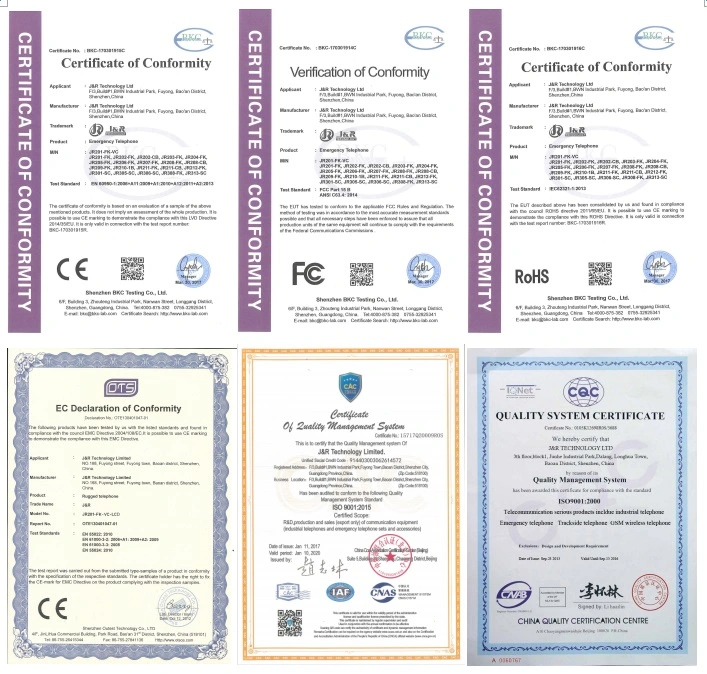

Certificates:

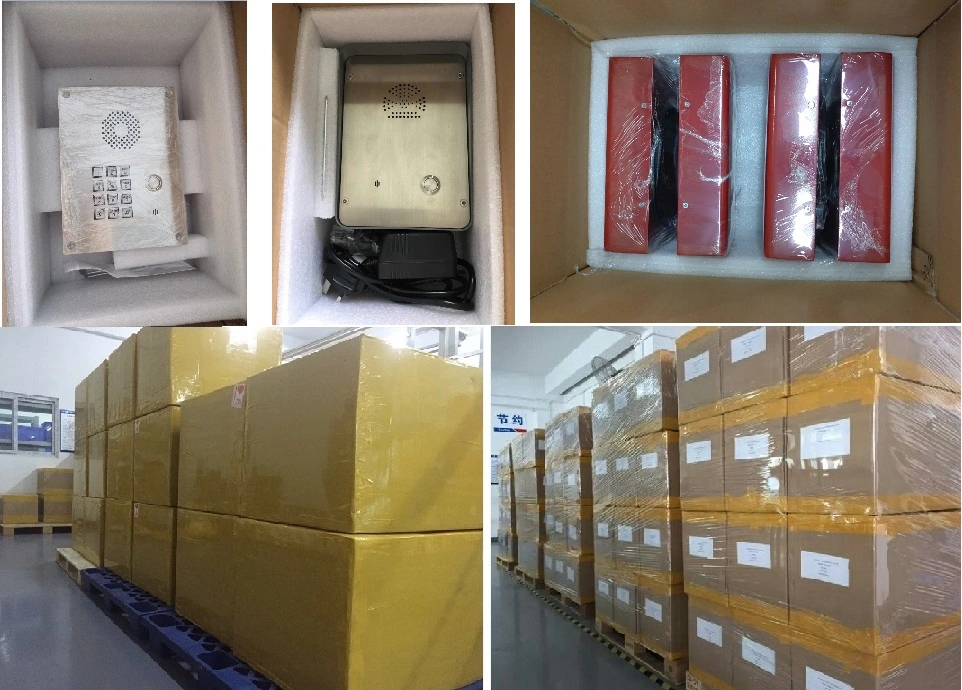

Package & Shippment:
Unit size: 190*280*124(mm)
Carton size:340 *240 *160( mm)
Packaging materials: pearl cotton, carton
Net weight: 2.4KG
Gross weight: 3KG
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.
