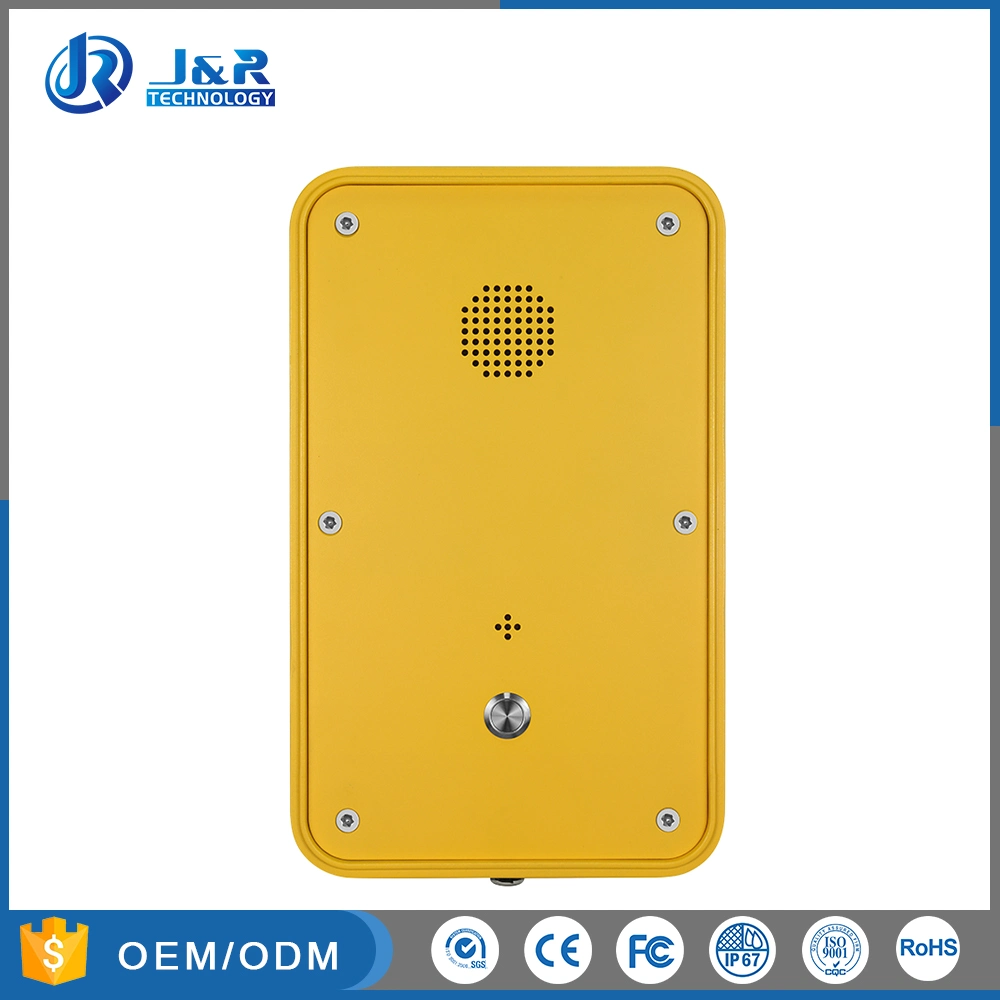

As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case, resulting in a highly reliable product with a long MTBF.
Heavy Duty Weatherproof Telephone are made for environments that need a telephone which can withstand rough usage and treatment.The telephone is well suited for outdoor usage-due to the thick aluminium casing with easy opening door, the stainless steel materials, the steel cable into the phone from bottom, and the Weather Resistant keypad.The telephone can handle heavy duty usage in indoor and outdoor environments.

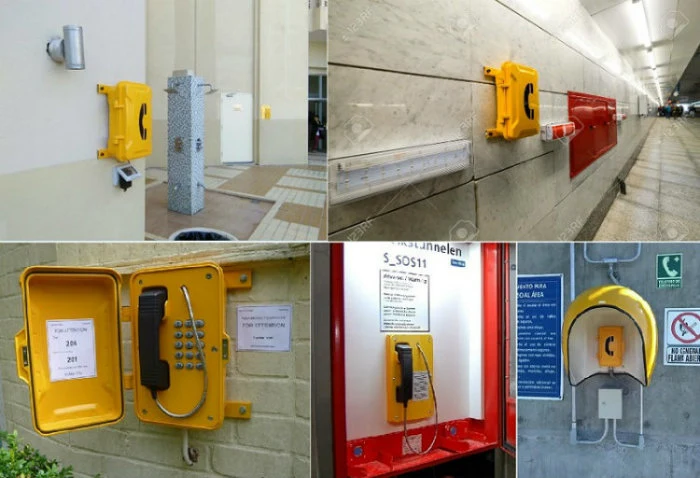

Ideal for indoor or outdoor, elevator phone, Taxi or bus stands or station, Highway call box. ATM machines side,Generation facilities,Hospital,Bank,Hotel,Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.
Standard IP/SIP phone,available for Anlaog,GSM or 3G version
Robust construction,Vandal resistant
All weather protection IP66-67
Handafree operation,With one button for emergency call
Weatherproof and corrosion resistant
Tamper resistant fixings
Fast-fit terminal connection
Programmed via web interface
Programmable for speed-dial (PPT)
DC 5V powered or Power-Over-Ethernet (PoE) as standard.
RJ45 Ethernet socket through IP67 plug connector.
ensuring optimal delivery of voice
high throughput and reliability (RFC3168)
connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Mass configuration available
CE, FCC,ROSH compliant
|Power Supply||From the analogue telephone network|
|Supply Voltage||24 VDC to 65 VDC|
|Supply Current||20 mA DC to 100 mA DC|
|Ringer Volume||- 80dB(A) at a distance of 1 m|
- 110dB(A) at a distance of 1 m (for external horn speaker)
DTMF mode in accordance with ITU-T recommendation Q.23.
|Power Supply||PoE or 12V DC|
|SIP Protocol||SIP 2.0 (RFC3261)|
|Support Codec||G.711 A/U, G.722 8000/16000, G.723, G.729|
|Communication Type||Full duplex|
|Ringer volume||- 90~95dB(A) at a distance of 1 m|
- 110dB(A) at a distance of 1 m (for external horn speaker
|Power Supply||12V DC|
|Communication Type||Full duplex|
|Ringer volume||90~95dB(A) at a distance of 1 m|
|Program Method||Remote programming by SMS|
|Frequency|| A version:|
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Dual-Band UMTS/HSDPA 900/2100MHz
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
DIMENSION & PACKAGE:
Unit size: 334*204*109(mm)
Carton size:200*300*440( mm )
Packaging materials: pearl cotton, carton
Net weight: 6KG
Gross weight: 7KG
How to order our products ?
1. Pls send email or chat with us via TM, MSN, SKYPE,
and let us know your requirements on models, quantities and colors;
2. We will reply you with proforma invoice based on your order request;
3. Kindly check the PI,and if everything is OK,
we will deliver the goods for you asap after got your payment. )
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.
J&R Technology Ltd
Choose J&R technology, Choose reliable talks!!
